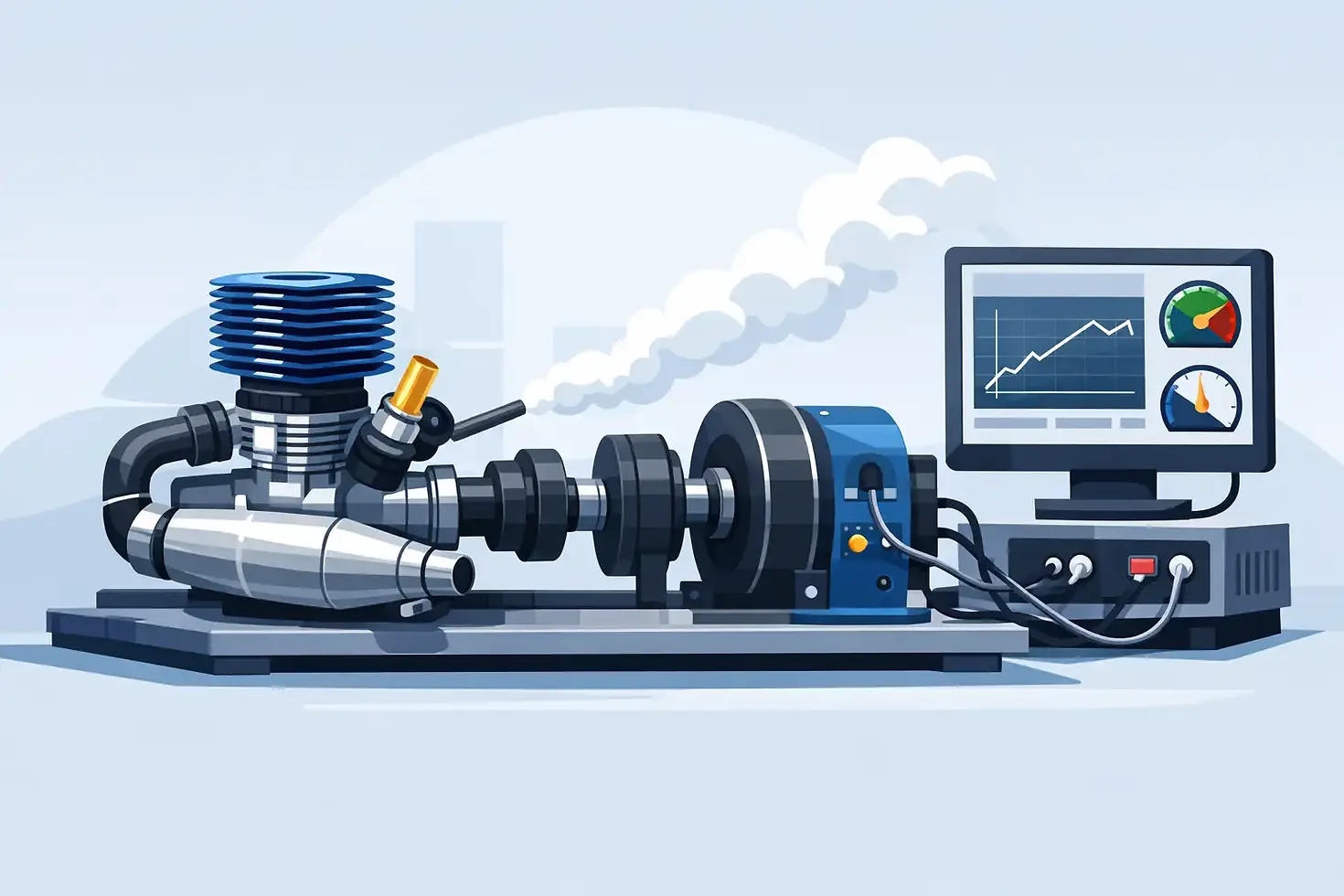

Nitro RC Engine Dyno Testing Under Load

A nitro engine can sound clean on a stand, reach high RPM with no load, and still fall flat the moment the clutch engages. That gap is exactly why nitro RC engine dyno testing matters. A racing engine is not asked to idle, free-rev, or make one impressive pass through the rev range. It must pull a vehicle from the corner, hold a stable tune through changing load, and deliver repeatable power across a full race.

Performance is measured, not guessed. Controlled-load dyno work gives the engine a job that resembles real operation, then records how it responds. The result is more useful than a peak-RPM claim or a few turns of the high-speed needle. It shows whether the engine is building usable torque, maintaining fuel delivery, holding compression behavior, and transitioning through the powerband without hesitation.

What Nitro RC Engine Dyno Testing Actually Measures

A proper dyno session evaluates the engine as a system. Fuel, air, ignition, compression, temperature, rotating assembly condition, and exhaust behavior all influence the result. Changing one variable may improve a single pull while creating an unstable engine later in the run. That is why data must be interpreted in context.

Under controlled load, the engine has to produce work. This exposes problems that often remain hidden during bench running or casual track tuning. A weak low-end transition, for example, may come from fuel delivery, clutch engagement, piston-to-sleeve condition, an air leak, or a combination of factors. The symptom alone is not a diagnosis.

The useful measurements are not limited to maximum RPM. A meaningful evaluation looks at how quickly the engine accepts throttle, where it begins to make usable output, whether power rises smoothly, and how consistently it repeats the same behavior. Temperature response and tuning sensitivity matter as well. An engine that produces a strong number only in a narrow needle setting is not necessarily a race-ready engine.

For racers, the powerband is often more valuable than the headline number. A broad, predictable delivery can make the car easier to drive, improve corner exit, and reduce the constant tuning corrections that distract from chassis setup and driving. The best engine for a tight, technical layout may not be the engine with the highest unloaded RPM.

Why Controlled Load Changes the Diagnosis

Bench idling has a limited place. It can confirm that an engine starts, holds a basic idle, and responds to initial needle adjustments. It cannot accurately reproduce the combustion pressure, thermal demand, or fuel requirement created when the engine is accelerating a car through dirt, clay, or pavement.

With too little load, an engine can run deceptively rich or lean without showing its true behavior. It may clear out crisply in the air, then bog on the track. It may appear to have acceptable top end, then lose consistency after several hard laps. Controlled load makes these differences visible because the engine must maintain combustion and fuel flow while resistance is applied.

This is especially critical during break-in. A new piston and sleeve need a controlled heat cycle and loading pattern that supports proper mating. Excessive no-load running can create heat without giving the parts the operating condition needed to establish a stable seal. Conversely, too much load or too lean a setting too early can damage the fit before it has a chance to stabilize.

A controlled-load process allows the operator to bring the engine through its operating range deliberately. Fuel settings, temperature, and load can be adjusted with a purpose rather than chased by feel. The goal is not simply to make the engine run. The goal is to build reliable compression behavior and usable output without sacrificing service life.

Peak Power Is Only One Part of Race Performance

Peak output is easy to discuss because it is a single number. It is also incomplete. A nitro racing engine spends much of its time accelerating, recovering from partial throttle, and transitioning between load conditions. Those areas determine whether the car feels connected to the trigger or unpredictable.

Consider two engines with similar maximum RPM. One may produce a sharp but narrow hit, followed by a drop in consistency as temperatures rise. The other may pull harder from the middle, transition cleanly, and remain stable across repeated runs. On a stopwatch, the second engine can be faster because the driver can use more of its performance more often.

Dyno analysis helps separate these behaviors. It can identify a lazy section in the curve, a sudden drop that suggests an air or fuel issue, or a powerband that is too peaky for the intended class and track. It also provides a baseline. Once an engine is measured in known condition, future changes are easier to evaluate instead of being attributed to weather, fuel, clutch setup, or expectation.

There are trade-offs. A tune chosen for maximum output may reduce margin for hot race conditions. A conservative tune can protect the engine but leave acceleration on the table. The correct setting depends on fuel, ambient temperature, pipe selection, vehicle load, racing format, and the owner’s durability target. The data informs the decision. It does not replace informed judgment.

Common Problems a Loaded Dyno Run Can Expose

A loaded test does not create a problem. It reveals the behavior already present in the engine. That distinction matters when an engine arrives with a complaint such as poor acceleration, an unstable tune, or weak compression.

A hesitation under throttle may point to low-speed fuel delivery, but it can also indicate a worn piston and sleeve that no longer maintain consistent crankcase pressure. A rich needle adjustment may mask the condition temporarily, then create a sluggish transition. Leaning the engine to recover response can raise temperature and accelerate wear. Without a system-level evaluation, the owner may keep adjusting needles around a mechanical issue.

Compression behavior is another example. An engine can feel tight when cold and still lose effective sealing once heat and load are introduced. The dyno run can reveal how that engine behaves through the temperature range where it must perform. If the output becomes unstable or the tuning window collapses, further inspection may be justified before more time is spent chasing settings.

Air leaks, inconsistent fuel feed, bearing condition, clutch-related loading issues, and an unsuitable exhaust combination can also affect the curve. The right response is not automatically a rebuild or a replacement part. Diagnostics should identify the finding, explain the likely effect on performance, and provide recommended corrective action before additional work proceeds.

A Disciplined Test Process Produces Useful Answers

Reliable results require repeatable conditions. Fuel must be appropriate and consistent. The engine needs a stable test setup, controlled cooling, known load, and enough run time to observe behavior beyond a single pull. Needle changes should be deliberate and documented. Otherwise, the test becomes another form of guesswork with more equipment around it.

At Powerband Precision, the focus is controlled-load evaluation rather than casual adjustment. The engine is assessed for how it delivers power, not simply whether it can be made to sound aggressive at high RPM. That approach supports clear recommendations: continue with tuning and verification, address a mechanical concern, or rebuild the engine when the measured condition warrants it.

For the engine owner, this transparency matters. Not every inconsistent engine needs the same repair. Some need a proper break-in and calibrated tune. Some need a fuel-system correction. Others have reached a point where worn components are limiting compression stability and no needle setting will restore predictable output. The value of testing is knowing which situation you have before spending money in the wrong direction.

When a Dyno Test Makes Sense

Dyno testing is most useful when there is a decision to make. A new competition engine benefits from controlled-load break-in and an established baseline. A used engine with unknown history benefits from measured condition assessment before it is trusted for a race weekend. An engine that has become sensitive to weather, lost punch, or changed its tune from one outing to the next deserves more than another round of trackside adjustments.

It is also valuable after a rebuild. Verification confirms that the engine is developing power consistently and that the intended break-in process is producing stable behavior. For serious racers, recording baseline results makes maintenance planning more objective. Instead of waiting for a dramatic failure, changes in output and tuning stability can guide service timing.

Bring useful information with the engine: fuel type and nitro percentage, plug preference, pipe and header setup, clutch configuration, break-in history, and the exact behavior you want corrected. The more specific the operating complaint, the faster testing can move from symptom to evidence.

Race-day confidence does not come from a needle setting copied from another driver or an engine that sounds fast on the stand. It comes from an engine that has been loaded, measured, evaluated, and prepared to deliver the same usable response when the track gets rough and the race gets long.
